OpenFeign是什么
Feign是一个声明式的Web Service客户端，是一种声明式、模板化的HTTP客户端。而OpenFeign是Spring Cloud 在Feign的基础上支持了Spring MVC的注解，如@RequesMapping等等。
OpenFeign的@FeignClient可以解析SpringMVC的@RequestMapping注解下的接口，并通过动态代理的方式产生实现类，实现类中做负载均衡并调用其他服务。
Feign可以把Rest的请求进行隐藏，伪装成类似SpringMVC的Controller一样。你不用再自己拼接url，拼接参数等等操作，一切都交给Feign去做。
- 可插拔的注解支持，包括Feign注解和JSX-RS注解
- 支持可插拔的HTTP编码器和解码器
- 支持Hystrix和它的Fallback
- 支持Ribbon的负载均衡
- 支持HTTP请求和响应的压缩。
OpenFeign入门
创建父Pom工程：cloud-openfeign-practice
此工程用于存放所有关于openfeign的示例。
pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.msr.better</groupId>
<artifactId>cloud-openfeign-practice</artifactId>
<version>1.0</version>
<packaging>pom</packaging>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.3.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<spring.cloud-version>Hoxton.SR3</spring.cloud-version>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring.cloud-version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
|
创建模块：cloud-openfeign-hehllo
pom.xml
1
2
3
4
5
6
7
8
9
10
|
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
</dependencies>
|
配置文件
application.xml
1
2
3
4
5
6
7
8
9
|
server:
port: 8010
spring:
application:
name: openfeign-hello
# 日志
logging:
level:
com.msr.better.feign.service.HelloFeignService: debug
|
配置类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
@Configuration
public class HelloFeignServiceConfig {
/**
* Logger.Level 的具体级别如下：
* NONE：不记录任何信息
* BASIC：仅记录请求方法、URL以及响应状态码和执行时间
* HEADERS：除了记录 BASIC级别的信息外，还会记录请求和响应的头信息
* FULL：记录所有请求与响应的明细，包括头信息、请求体、元数据
*/
@Bean
Logger.Level feignLoggerLevel() {
return Logger.Level.FULL;
}
}
|
serivce
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
@FeignClient(name = "github-client", url = "https://api.github.com", configuration = HelloFeignServiceConfig.class)
public interface HelloFeignService {
/**
* content:
* {
* "message":"Validation Failed",
* "errors":[{"resource":"Search","field":"q","code":"missing"}],
* "documentation_url":"https://developer.github.com/v3/search"
* }
*
* @param queryStr
* @return
*/
@GetMapping(value = "/search/repositories")
String searchRepo(@RequestParam("q") String queryStr);
}
|
在上面的HelloFeignService中通过@FeignClient注解手动指定了该接口要访问的URL(https://api.github.com)，调用searchGithubRepoByStr方法时，最终会发起GET请求https://api.github.com/search/repositories?q=输入的参数。
controller
1
2
3
4
5
6
7
8
9
10
11
|
@RestController
public class HelloFeignController {
@Autowired
private HelloFeignService helloFeignService;
@GetMapping(value = "/search/github")
public String searchGithubRepoByStr(@RequestParam("searchStr") String searchStr) {
return helloFeignService.searchRepo(searchStr);
}
}
|
启动类
1
2
3
4
5
6
7
8
|
@SpringBootApplication
@EnableFeignClients
public class OpenFeignHelloApplication {
public static void main(String[] args) {
SpringApplication.run(OpenFeignHelloApplication.class, args);
}
}
|
@EnableFeignClients包扫描时，扫描所有@FeignClient。

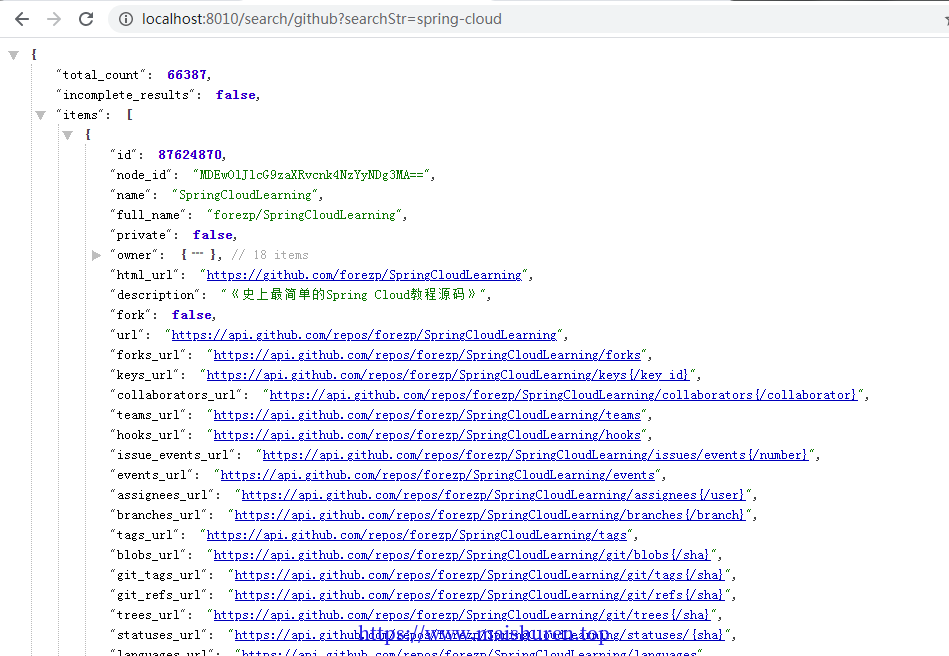

启动测试
运行启动类之后，在浏览器或者PostMan之类的工具访问http://localhost:8010/search/github?searchStr=spring-cloud
OpenFeign工作原理
- 添加@EnableFeignClients注解开启对@FeignClient注解的扫描加载处理。根据Feign Client的开发规范，定义接口并添加@FeiginClient注解
- 当程序启动之后，会进行包扫描，扫描所有@FeignClient注解的接口，并将这些信息注入到IOC容器中。当定义的Feign接口被调用时，通过JDK的代理的方式生成具体的RequestTemplate。Feign会为每个接口方法创建一个RequestTemplate对象。该对象封装了HTTP请求需要的所有信息，例如请求参数名、请求方法等信息。
- 然后由RequestTemplate生成Request，把Request交给Client去处理，这里的Client可以是JDK原生的URLConnection、HttpClient或Okhttp。最后Client被封装到LoadBalanceClient类，看这个类的名字既可以知道是结合Ribbon负载均衡发起服务之间的调用，因为在OpenFeign中默认是已经整合了Ribbon了。
OpenFiegn的基础功能
剖析@FeignClient注解
1
2
3
4
|
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface FeignClient {...}
|
从FeignClient的注解可以看得出，ElementType.TYPE说明FeignClient的作用目标是接口。其常用的属性如下：
- name：执行FeignClient的名称，如果项目中使用Ribbon，name属性会作为微服务的名称，用作服务发现。
- url：url一般用于调试，可以手动指定@FeignClient调用的地址
- decode404：当发生404错误时，如果该字段为true，会调用decoder进行解码，否则抛出FeignException。
- configuration：Feigin配置类，可自定义Feign的Encode，Decode，LogLevel，Contract。
- fallback：定义容错的类，当远程调用的接口失败或者超时的时候，会调用对应接口的容错罗杰，fallback执行的类必须实现@FeignClient标记的接口。在OpenFeign的依赖中可以发现，集成Hystrix。
- fallbackFactory：工厂类，用于生成fallback类实例，通过此属性可以实现每个接口通用的容错逻辑，以达到减少重复的代码。
- path：定义当前FeignClient的统一前缀。
OpenFeign开始GZIP压缩
OpenFeign支持对请求和响应进行GZIP压缩，以此来提供通信效率。只需在配置文件中配置即可，比较简单。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
server:
port: 8011
spring:
application:
name: openfeign-gzip
logging:
level:
com.msr.better.feign.service.HelloFeignService: debug
feign:
# 压缩配置
compression:
request:
enabled: true
# 配置压缩支持的MIME TYPE
mime-types: text/xml,application/xml,application/json
min-request-size: 2048 # 配置压缩数据大小的下限
response:
enabled: true # 配置响应GZIP压缩
|
等价的properties配置
1
2
3
4
5
6
7
|
feign.compression.request.enabled=true
# 配置压缩支持的MIME TYPE
feign.compression.request.mime-types=text/xml,application/xml,application/json
# 配置压缩数据大小的下限
feign.compression.request.min-request-size=2048
# 配置响应GZIP压缩
feign.compression.response.enabled=true
|
支持属性文件配置
对单个特定名称的FeignClient进行配置
@FeignClientde的配置信息可以通过配置文件的方式来配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
|
server:
port: 8011
spring:
application:
name: openfeign-gzip
logging:
level:
com.msr.better.feign.service.HelloFeignService: debug
feign:
# 压缩配置
compression:
request:
enabled: true
# 配置压缩支持的MIME TYPE
mime-types: text/xml,application/xml,application/json
min-request-size: 2048 # 配置压缩数据大小的下限
response:
enabled: true # 配置响应GZIP压缩
client:
config:
# 需要配置的FeignName
github-client:
# 连接超时时间
connectTimout: 5000
# 读超时时间
readTimeut: 5000
# Feign的日志级别
loggerLevel: full
# Feign的错误解码器
errorDecode: com.example.SimpleErrorDecoder
# 设置重试
retryer: com.example.SimpleRetryer
# 拦截前
requestInterceptors:
- com.example.FirstInterceptor
- com.example.SecondInterceptor
decode404: false
# Feign的编码器
encoder: com.example.SimpleEncoder
# Feign的解码器
decoder: com.example.SimpleDecoder
# Feign的contract配置
contract: com.example.SimpleContract
|
作用于所有FeignClient的配置
在@EnableFeignClients注解上有一个defaultConfiguration属性，可以将默认设置写成一个配置类，例如这个类叫做DefaultFeignClientConfiguration。
1
2
3
4
5
|
@SpringBootApplication
@EnableFeignClients(defaultConfiguration = DefaultFeignClientConfiguration.class)
public class FeignClientConfigApplication{
SpringApplication.run(FeignClientConfigApplication.class, args);
}
|
同时也可以在配置文件中配置
1
2
3
4
5
6
7
8
9
10
11
|
feign:
client:
config:
default:
# 连接超时时间
connectTimout: 5000
# 读超时时间
readTimeut: 5000
# Feign的日志级别
loggerLevel: full
...
|
但是如果以上两种方式(在配置文件和在注解中配置FeignClient的全局配置)，最后配置文件会覆盖注解上执行配置类的方式。但是可以在配置文件中添加feign.client.default-to-properties=false来改变Feigin配置的优先级。
FeignClient开启日志
其实在上面的就已经是配置了FeignClient的日志了。Feign为每一个Feign都提供了一个fegin.Logger实例。可以在配置中开启日志输出，开启的步骤也很简单。
第一步：在配置文件中配置日志输出
1
2
3
4
|
logging:
level:
# 指定那个FeignClient接口的请求需要输出日志，以及日志级别
com.msr.better.feign.service.HelloFeignService: debug
|
第二步：通过Java代码的方式在主程序入口配置日志Bean
1
2
3
4
5
|
@Bean
Logger.Level feignLoggerLevel() {
return Logger.Level.FULL;
}
|
又或者通过配置类配置，并在@FeignClient注解中执行改配置类。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
@Configuration
public class HelloFeignServiceConfig {
/**
* Logger.Level 的具体级别如下：
* NONE：不记录任何信息
* BASIC：仅记录请求方法、URL以及响应状态码和执行时间
* HEADERS：除了记录 BASIC级别的信息外，还会记录请求和响应的头信息
* FULL：记录所有请求与响应的明细，包括头信息、请求体、元数据
*/
@Bean
Logger.Level feignLoggerLevel() {
return Logger.Level.FULL;
}
}
|
FeignClient超时配置
Feign的调用分为两层，Ribbon的调用和Hystrix的调用。但是高版本的Hystrix默认是关闭的。一般出现想这样的异常：Read timed out executing POST http://***，是由Ribbon引起，这样可以适当得调大一下Ribbon的超时时间
1
2
3
|
ribbon:
ConnectTimeout: 2000
ReadTimeout: 5000
|
HystrixRuntimeException: XXX timed -out and no fallback available .这就是Hystrix的超时报错
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
feign:
hystrix:
enabled: true
# 设置hystrix超时时间
hystrix:
shareSecurityContext: true
command:
default:
circuitBreaker:
sleepWindowinMilliseconds: 10000
forceClosed: true
execution:
isolation:
thread:
timeoutinMilliseconds: 10000
|
OpenFeign实战
替换默认的Client
Feign默认是使用JDK原生的URLConnection发送HTTP请求，没有连接池，但是对每个地址会保持一个长连接，就是利用HTTP的persistence connection.。这样可以使用其他优秀的Client去替换。这样可以设置连接池，超时时间等对服务之间的调用调优。下面介绍使用Http Client和Okhttp替换Feign默认的Client。步骤也很简单。
使用Http Client替换默认的Client
pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Cloud OpenFeign的Starter的依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- 使用Apache HttpClient替换Feign原生httpclient -->
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
</dependency>
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-httpclient</artifactId>
</dependency>
</dependencies>
|
application.yml
1
2
3
4
5
6
7
8
|
server:
port: 8010
spring:
application:
name: openfeign-httpclient
feign:
httpclient:
enabled: true
|

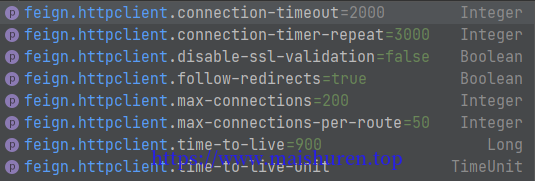

关于Http Client的一些配置也是可以在配置文件中配置的
在org.springframework.cloud.openfeign.clientconfig.HttpClientFeignConfiguration中是关于HttpClient的配置：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
|
@Configuration(
proxyBeanMethods = false
)
@ConditionalOnMissingBean({CloseableHttpClient.class})
public class HttpClientFeignConfiguration {
private final Timer connectionManagerTimer = new Timer("FeignApacheHttpClientConfiguration.connectionManagerTimer", true);
private CloseableHttpClient httpClient;
@Autowired(
required = false
)
private RegistryBuilder registryBuilder;
public HttpClientFeignConfiguration() {
}
@Bean
@ConditionalOnMissingBean({HttpClientConnectionManager.class})
public HttpClientConnectionManager connectionManager(ApacheHttpClientConnectionManagerFactory connectionManagerFactory, FeignHttpClientProperties httpClientProperties) {
final HttpClientConnectionManager connectionManager = connectionManagerFactory.newConnectionManager(httpClientProperties.isDisableSslValidation(), httpClientProperties.getMaxConnections(), httpClientProperties.getMaxConnectionsPerRoute(), httpClientProperties.getTimeToLive(), httpClientProperties.getTimeToLiveUnit(), this.registryBuilder);
this.connectionManagerTimer.schedule(new TimerTask() {
public void run() {
connectionManager.closeExpiredConnections();
}
}, 30000L, (long)httpClientProperties.getConnectionTimerRepeat());
return connectionManager;
}
@Bean
@ConditionalOnProperty(
value = {"feign.compression.response.enabled"},
havingValue = "true"
)
public CloseableHttpClient customHttpClient(HttpClientConnectionManager httpClientConnectionManager, FeignHttpClientProperties httpClientProperties) {
HttpClientBuilder builder = HttpClientBuilder.create().disableCookieManagement().useSystemProperties();
this.httpClient = this.createClient(builder, httpClientConnectionManager, httpClientProperties);
return this.httpClient;
}
@Bean
@ConditionalOnProperty(
value = {"feign.compression.response.enabled"},
havingValue = "false",
matchIfMissing = true
)
public CloseableHttpClient httpClient(ApacheHttpClientFactory httpClientFactory, HttpClientConnectionManager httpClientConnectionManager, FeignHttpClientProperties httpClientProperties) {
this.httpClient = this.createClient(httpClientFactory.createBuilder(), httpClientConnectionManager, httpClientProperties);
return this.httpClient;
}
private CloseableHttpClient createClient(HttpClientBuilder builder, HttpClientConnectionManager httpClientConnectionManager, FeignHttpClientProperties httpClientProperties) {
RequestConfig defaultRequestConfig = RequestConfig.custom().setConnectTimeout(httpClientProperties.getConnectionTimeout()).setRedirectsEnabled(httpClientProperties.isFollowRedirects()).build();
CloseableHttpClient httpClient = builder.setDefaultRequestConfig(defaultRequestConfig).setConnectionManager(httpClientConnectionManager).build();
return httpClient;
}
@PreDestroy
public void destroy() throws Exception {
this.connectionManagerTimer.cancel();
if (this.httpClient != null) {
this.httpClient.close();
}
}
}
|
很明显当没有CloseableHttpClient这个bean的时候，就是会由这个类来生成Http Client的默认配置。所以说对于HttpClient的自定义配置可以通过自己注入CloseableHttpClient。还有HttpClientConnectionManager管理连接的bean。其实OpenFeign对HttpClient的支持很好，因为它的一些属性可以在配置文件中配置。
使用Okhttp替换默认的Client
其实和Http Client一样的配置，也是在配置文件中开启
pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring Cloud OpenFeign的Starter的依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-okhttp</artifactId>
</dependency>
</dependencies>
|
application.yml
1
2
3
4
5
6
7
8
9
10
11
12
|
server:
port: 8011
spring:
application:
name: openfeign-okhttp
feign:
okhttp:
enabled: true
# 日志
logging:
level:
com.msr.better.feign.service.HelloFeignService: debug
|
这样开启之后，Client就被替换了。同理在org.springframework.cloud.openfeign.clientconfig包下，也有一个关于Okhttp的配置类。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
@Configuration(
proxyBeanMethods = false
)
@ConditionalOnMissingBean({OkHttpClient.class})
public class OkHttpFeignConfiguration {
private OkHttpClient okHttpClient;
public OkHttpFeignConfiguration() {
}
@Bean
@ConditionalOnMissingBean({ConnectionPool.class})
public ConnectionPool httpClientConnectionPool(FeignHttpClientProperties httpClientProperties, OkHttpClientConnectionPoolFactory connectionPoolFactory) {
Integer maxTotalConnections = httpClientProperties.getMaxConnections();
Long timeToLive = httpClientProperties.getTimeToLive();
TimeUnit ttlUnit = httpClientProperties.getTimeToLiveUnit();
return connectionPoolFactory.create(maxTotalConnections, timeToLive, ttlUnit);
}
@Bean
public OkHttpClient client(OkHttpClientFactory httpClientFactory, ConnectionPool connectionPool, FeignHttpClientProperties httpClientProperties) {
Boolean followRedirects = httpClientProperties.isFollowRedirects();
Integer connectTimeout = httpClientProperties.getConnectionTimeout();
this.okHttpClient = httpClientFactory.createBuilder(httpClientProperties.isDisableSslValidation()).connectTimeout((long)connectTimeout, TimeUnit.MILLISECONDS).followRedirects(followRedirects).connectionPool(connectionPool).build();
return this.okHttpClient;
}
@PreDestroy
public void destroy() {
if (this.okHttpClient != null) {
this.okHttpClient.dispatcher().executorService().shutdown();
this.okHttpClient.connectionPool().evictAll();
}
}
}
|
很明显OkHttpClient是核心功能执行的类。因为OpenFeign中有一个类FeignHttpClientProperties，有了这个类关于HttpClient的属性就可以在配置文件中设置了。但是Okhttp没有这一个类似的类，所以一般可以自己注入一个OkHttpClient去设置这些属性
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
@Configuration
@ConditionalOnClass(Feign.class)
@AutoConfigureBefore(FeignAutoConfiguration.class)
public class OkHttpConfig {
@Bean
public okhttp3.OkHttpClient okHttpClient() {
return new okhttp3.OkHttpClient.Builder()
//设置连接超时
.connectTimeout(60, TimeUnit.SECONDS)
//设置读超时
.readTimeout(60, TimeUnit.SECONDS)
//设置写超时
.writeTimeout(60, TimeUnit.SECONDS)
//是否自动重连
.retryOnConnectionFailure(true)
.connectionPool(new ConnectionPool())
//构建OkHttpClient对象
.build();
}
}
|
关于自定义OkHttpClient的配置，可以参考OpenFeign里OkHttpFeignConfiguration的配置，例如ConnectionPool这个bean。
Post和Get的多参数传递
在使用OpenFeign实现服务之间的调用时，很多时候是要传递多个参数。
创建cloud-openfeign-eureka-server模块
Eureka Server注册中心
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!-- springboot web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<artifactId>spring-boot-starter-tomcat</artifactId>
<groupId>org.springframework.boot</groupId>
</exclusion>
</exclusions>
</dependency>
<!--不用Tomcat,使用undertow -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-undertow</artifactId>
</dependency>
<dependency>
<groupId>io.undertow</groupId>
<artifactId>undertow-servlet</artifactId>
</dependency>
</dependencies>
|
配置文件application.yml
1
2
3
4
5
6
7
8
9
10
11
12
|
server:
port: 8761
eureka:
instance:
hostname: localhost
server :
enable-self-preservation: false
client:
registerWithEureka: false
fetchRegistry: false
serviceUrl:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
|
启动类
1
2
3
4
5
6
7
|
@SpringBootApplication
@EnableEurekaServer
public class EurekaApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaApplication.class, args);
}
}
|
创建cloud-openfeign-provider模块
服务提提供者
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
</dependencies>
|
配置文件application.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
|
server:
port: 8012
spring:
application:
name: openfeign-provider
eureka:
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/
#eureka.instance.prefer-ip-address 表示将自己的IP注册到Eureka Server上，
#如果不配置,会将当前服务提供者所在的主机名注册到Eureka Server上。
instance:
prefer-ip-address: true
|
实体类和控制器
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
public class Order {
private Long id;
private String name;
private int age;
public Long getId() {
return id;
}
public void setId(Long id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
}
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
@RestController
@RequestMapping("/order")
public class OrderController {
@GetMapping(value = "/add")
public String addUser(Order order, HttpServletRequest request) {
String token = request.getHeader("oauthToken");
return "hello," + order.getName();
}
@PostMapping(value = "/update")
public String updateUser(@RequestBody Order order) {
return "hello," + order.getName();
}
}
|
启动类
1
2
3
4
5
6
7
|
@SpringBootApplication
@EnableDiscoveryClient
public class ProviderApplication {
public static void main(String[] args) {
SpringApplication.run(ProviderApplication.class, args);
}
}
|
创建cloud-openfeign-consumer模块
消费者服务
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- 使用Apache HttpClient替换Feign原生httpclient -->
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
</dependency>
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-httpclient</artifactId>
</dependency>
</dependencies>
|
配置文件application.yml
1
2
3
4
5
6
7
8
9
10
11
12
|
server:
port: 8011
spring:
application:
name: openfeign-consumer
eureka:
client:
service-url:
defaultZone: http://localhost:8761/eureka
feign:
httpclient:
enabled: true
|
实体类
1
2
3
4
5
6
7
8
|
package com.msr.better.feign.model;
public class Order {
private Long id;
private String name;
private int nums;
// 此处省略了getter和setter
}
|
FeignClient接口
1
2
3
4
5
6
7
8
|
@FeignClient("openfeign-provider")
public interface OrderApiService {
@GetMapping(value = "/order/add")
String addUser(@SpringQueryMap Order order);
@PostMapping(value = "/order/update")
String updateUser(@RequestBody Order order);
}
|
此处的Client接口中对于GET请求传递实体类使用了注解@SpringQueryMap。OpenFeign@QueryMap批注支持将POJO用作GET参数映射。但是默认的OpenFeign QueryMap注释与Spring不兼容，因为它缺少value属性。
Spring Cloud OpenFeign提供了等效的@SpringQueryMap注释，该注释用于将POJO或Map参数注释为查询参数映射。
在一些资料中说什么OpenFeign的什么GET不能传递POJO，写了个拦截器把实体类转换了，估计是OpenFeign的版本低，在新的OpenFeign中是有了对QueryMap的支持了。
配置类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
@Configuration
public class CoreAutoConfiguration {
@Autowired
private HttpClient httpClient;
@Bean
public HttpComponentsClientHttpRequestFactory httpComponentsClientHttpRequestFactory() {
HttpComponentsClientHttpRequestFactory factory = new HttpComponentsClientHttpRequestFactory();
factory.setHttpClient(httpClient);
factory.setReadTimeout(3000);
factory.setConnectTimeout(3000);
factory.setConnectionRequestTimeout(3000);
return factory;
}
/**
* {@link RestTemplate }的setRequestFactory方法支持HttpClient和Okhttp等Client
* 默认是使用{@link SimpleClientHttpRequestFactory } Http的请求是使用原生的URLConnection
*
* @return RestTemplate的bean
*/
@LoadBalanced
@Bean
public RestTemplate restTemplate() {
RestTemplate restTemplate = new RestTemplate();
restTemplate.setRequestFactory(httpComponentsClientHttpRequestFactory());
return restTemplate;
}
}
|
上面是替换了RestTemplate的Client。因为RestTemplate默认是使用URLConnection。这里是使用HttpClient替换了。
控制器
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
@RestController
@RequestMapping("api")
public class OrderController {
@Autowired
private OrderApiService orderApiService;
/**
* @param order
* @return
*/
@PostMapping("/get/pojo")
public String getPojo(@RequestBody Order order) {
return orderApiService.addUser(order);
}
@PostMapping("/post/pojo")
String postPojo(@RequestBody Order order){
return orderApiService.updateUser(order);
}
}
|
最后就可以测试http://localhost:8011/get/pojo和http://localhost:8011/post/pojo了。
文件上传
继续使用上一节创建的Eureka Server。然后创建一下两个模块用作文件上传。
想要实现文件上传功能，需要编写Encoder去实现文件上传。现在OpenFeign提供了子项目feign-form(https://github.com/OpenFeign/feign-form)
创建cloud-openfeign-fileupload-server
文件上传接口的提供者
1
2
3
4
5
6
7
8
9
10
|
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
</dependencies>
|
配置文件application.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
server:
port: 8012
spring:
application:
name: openfeign-file-server
eureka:
server:
enableSelfPreservation: false
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/
instance:
prefer-ip-address: true
|
启动类
1
2
3
4
5
6
7
|
@SpringBootApplication
@EnableDiscoveryClient
public class UploadServerApplication {
public static void main(String[] args) {
SpringApplication.run(UploadServerApplication.class, args);
}
}
|
上传接口
1
2
3
4
5
6
7
8
9
|
@RestController
public class FileController {
@PostMapping(value = "/uploadFile/server", consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
public String fileUploadServer(MultipartFile file) {
// save file and return file address
return "http://localhost/" + file.getOriginalFilename();
}
}
|
创建cloud-openfeign-fileupload-client
文件上传接口的调用者
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<!-- Spring Cloud OpenFeign的Starter的依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- Feign文件上传依赖-->
<dependency>
<groupId>io.github.openfeign.form</groupId>
<artifactId>feign-form</artifactId>
<version>3.8.0</version>
</dependency>
<dependency>
<groupId>io.github.openfeign.form</groupId>
<artifactId>feign-form-spring</artifactId>
</dependency>
</dependencies>
|
配置文件application.yml
1
2
3
4
5
6
7
8
9
|
server:
port: 8011
spring:
application:
name: openfeign-upload-client
eureka:
client:
service-url:
defaultZone: http://localhost:8761/eureka
|
启动类：
1
2
3
4
5
6
7
8
9
|
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class UploadClientApplication {
public static void main(String[] args) {
SpringApplication.run(UploadClientApplication.class, args);
}
}
|
配置类
1
2
3
4
5
6
7
8
9
10
|
@Configuration
public class FeignMultipartSupportConfig {
@Bean
@Primary
@Scope("prototype")
public Encoder multipartFormEncoder() {
return new SpringFormEncoder();
}
}
|
控制器
1
2
3
4
5
6
7
8
9
10
11
12
|
@RestController
@RequestMapping("file")
public class FeignUploadController {
@Autowired
private FileUploadApiService fileUploadApiService;
@PostMapping(value = "/upload", consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
public String imageUpload(MultipartFile file) throws Exception {
return fileUploadApiService.fileUpload(file);
}
}
|
FeignClient
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
@FeignClient(value = "openfeign-file-server", configuration = FeignMultipartSupportConfig.class)
public interface FileUploadApiService {
/***
* 1.produces,consumes必填
* 2.注意区分@RequestPart和RequestParam，不要将
* @RequestPart(value = "file") 写成@RequestParam(value = "file")
* @param file
* @return
*/
@PostMapping(value = "/uploadFile/server",
produces = {MediaType.APPLICATION_JSON_UTF8_VALUE},
consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
String fileUpload(@RequestPart(value = "file") MultipartFile file);
}
|
测试
- 先启动cloud-openfeign-eureka-server
- 后启动cloud-openfeign-fileupload-server和cloud-openfeign-fileupload-client

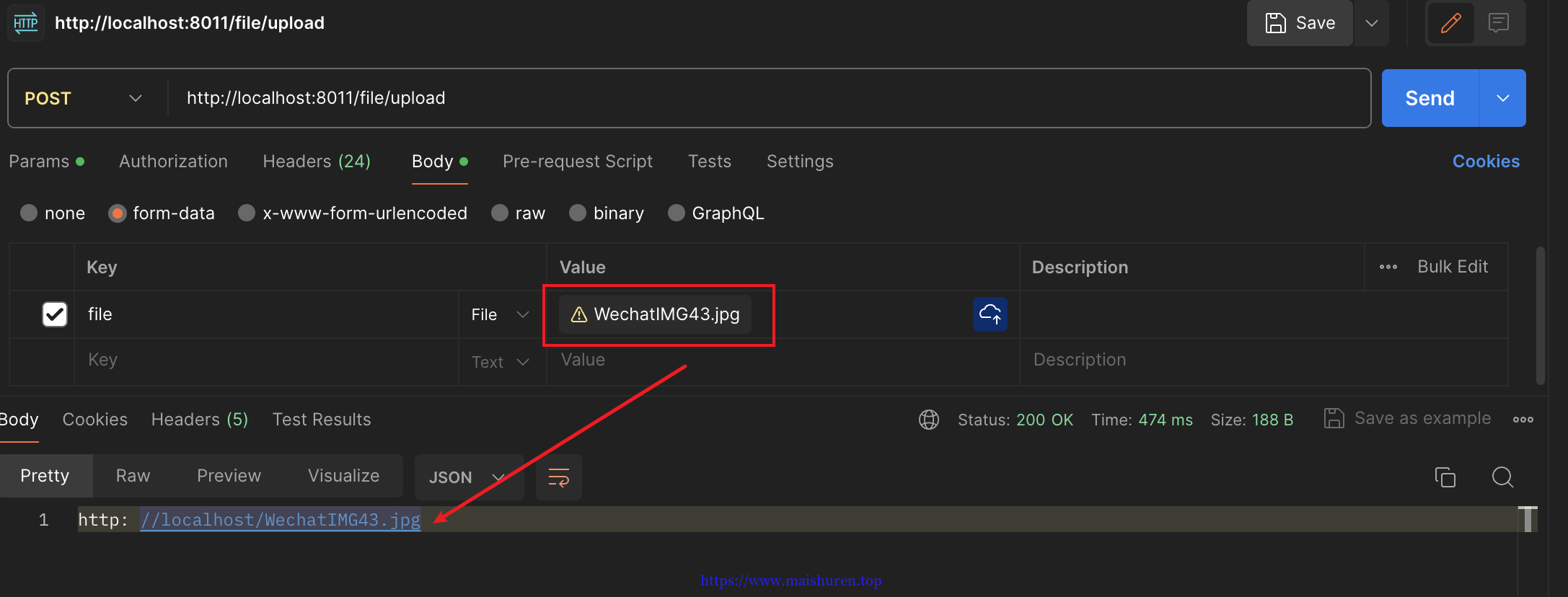

- 使用PostMan进行测试。最后成功返回文件的名字，文件成功的上传到server上了。如下图：
解决首次请求失败问题
由于OpenFeign整合了Ribbon和Hystrix，可能会出现首次调用失败的问题。
主要原因是：Hystrix默认的超时时间是1秒，如果超过这个时间没有响应，就会进入fallback代码。由于Bean的装配和懒加载的机制，Feign首次请求都会比较慢。如此一来当响应时间大于1秒就会进入fallback而导致请求失败。解决方法：
-
将Hystrix的超时时间调大，此方法比较好
1
2
3
4
5
6
7
|
hystrix:
command:
default:
execution:
isolation:
thread:
timeoutInMillseconds: 5000 # 5秒
|
-
禁用Hystrix的超时时间
1
2
3
4
5
6
|
hystrix:
command:
default:
execution:
timout:
enable: false
|
-
使用Feign的时候关闭Hystrix，这是不推荐的
1
2
3
|
feign:
hystrix:
enable: false
|
返回图片流的处理方式
对于返回的是图片，一般都是字节数组。但是Contrller不能直接返回byte，所以被调用的API返回的类型应该使用Response。
使用上面的文件上传创建的模块中添加一个返回图片的接口。以生成一个二维码为例。
cloud-openfeign-fileupload-server的一些修改
添加新的依赖，使用hutool快速生成二维码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.6.3</version>
</dependency>
<dependency>
<groupId>com.google.zxing</groupId>
<artifactId>core</artifactId>
<version>3.3.3</version>
</dependency>
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-core</artifactId>
</dependency>
|
controller的接口，这里仅简单的生成了一个二维码，二维码还可以添加更加多的信息。这里就不详细介绍，hutool的QrCodeUtil有很多方法，有兴趣的可以自行研究。
1
2
3
4
5
6
7
8
9
10
11
|
@GetMapping(value = "/qrcode")
public byte[] image() {
return generateQrCode();
}
/**
* 先简单的生成一个url的二维码,指向百度
* @return
*/
private byte[] generateQrCode() {
return QrCodeUtil.generatePng("https://www.baidu.cn/", 300, 300);
}
|
cloud-openfeign-fileupload-client的一些修改
添加新依赖
1
2
3
4
5
|
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.6</version>
</dependency>
|
feignclient添加新接口
1
2
|
@GetMapping("/qrcode")
Response getQrCode();
|
controller的修改，对于要在前端页面显示图片，一般用的最多的是返回页面一个url，但是这都是存储好的图片，但是每次生成验证码和二维码这些，服务端可能并不会存储起来。所以并不能返回一个url地址，对于验证码用的返回前端Base64编码。二维码的话可以基于HttpServletResponse，produces返回字节流和Base64图片。
这里使用HttpServletResponse，添加方法：
1
2
3
4
5
6
7
8
9
10
11
|
@GetMapping("/qrcode")
public void getQrCode(HttpServletResponse response) {
Response res = fileUploadApiService.getQrCode();
try {
InputStream inputStream = res.body().asInputStream();
response.setContentType(MediaType.IMAGE_PNG_VALUE);
IOUtils.copy(inputStream,response.getOutputStream());
} catch (IOException e) {
e.printStackTrace();
}
}
|

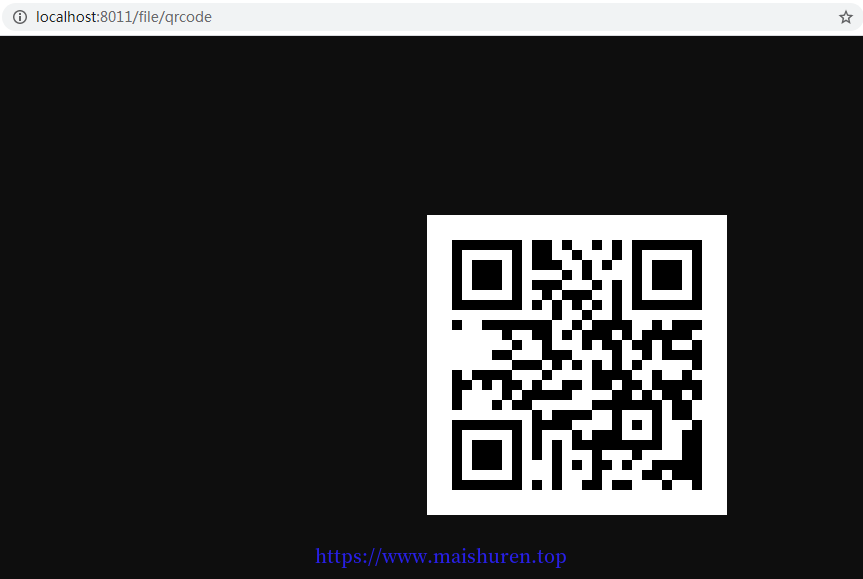

浏览器访问:http://localhost:8011/file/qrcode，结果
调用传递token
正常的来说，系统都是有认证鉴权的功能，不管是JWT还是security，在外部请求到A服务时，是带有token过来的，但是此请求在A服务内部通过Feign调用B服务时，就会发生token的丢失。
解决方法也是不难，就是在使用Feign远程调用时，在请求头里携带一下token，一般token是放在请求头里面。
Feign提供的拦截器RequestInterceptor，这样可以拦截Feign的请求，在请求头里添加token。对于这部分代码，在cloud-openfeign-consumer和cloud-openfeign-provider上进行添加。
修改cloud-openfeign-provider
修改一下方法，便于展示结果
1
2
3
4
5
|
@PostMapping(value = "/update")
public String updateOrder(@RequestBody Order order, HttpServletRequest request) {
String token = request.getHeader("token");
return "hello," + order.getName() + " " + "haha!I get a token: " + token;
}
|
修改cloud-openfeign-consumer
添加拦截器实现feign.RequestInterceptor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
@Component
public class FeignTokenInterceptor implements RequestInterceptor {
@Override
public void apply(RequestTemplate requestTemplate) {
if (null == getHttpServletRequest()) {
//此处可以记录一些日志
return;
}
//将获取Token对应的值往下面传
requestTemplate.header("token", getHeaders(getHttpServletRequest()).get("token"));
}
private HttpServletRequest getHttpServletRequest() {
try {
return ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest();
} catch (Exception e) {
return null;
}
}
/**
* Feign拦截器拦截请求获取Token对应的值
*
* @param request
* @return
*/
private Map<String, String> getHeaders(HttpServletRequest request) {
Map<String, String> map = new LinkedHashMap<>();
Enumeration<String> enumeration = request.getHeaderNames();
while (enumeration.hasMoreElements()) {
String key = enumeration.nextElement();
String value = request.getHeader(key);
map.put(key, value);
}
return map;
}
}
|
最后启动服务就可以开始测试了，测试结果：
总结
本文介绍了一些Feign的用法，后续如果有关于Feign新的东西将会新开文章述说。
